ALMR200

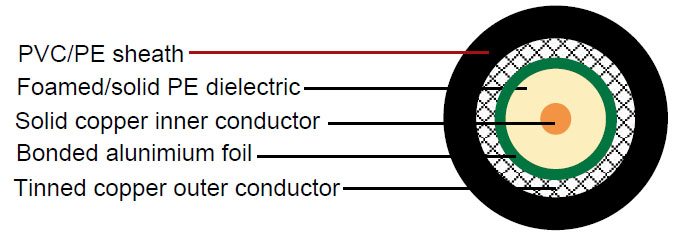

Construction :

  • Inner conductor Solid copper Φ1.12 mm
    Dielectric Foam /Solid PE Φ2.95 mm
    Shield Bonded aluminium foil Φ3.07 mm
    Outer conductor Tinned copper braid Φ3.66 mm
    Sheath PVC/PE Φ4.95 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80.3 pF/m
    Velocity of propagation 83%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 17.6 Ohm/Km
    Outer conductor resistance 16.1 Ohm/Km
    Operating temperature range -40°C - +85 °C
    Min.bending radius 27 mm

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    30 5.8 1.8
    50 7.5 2.3
    150 13.1 4.0
    220 15.9 4.8
    450 22.8 6.9
    900 32.6 9.9
    1500 42.4 12.9
    1800 46.6 14.2
    2000 49.3 15.0
    2500 55.4 16.9
    3000 60.0 18.3
    5800 86.5 26.4
>
